LIQUID RING COMPRESSORS

TRH

Compressors > TR Low Pressure Liquid Ring Process Compressors

DISSASSEMBLY MANUAL

Technical Documentation

TRH 32-4

1Capacity CFM / m3/h: 2.3/ 2.7
PSIG: 5/20
1Motor HP / RPM: 1/1750

TRH 32-20

1Capacity CFM / m3/h: 11/13
PSIG: 5/20
1Motor HP / RPM: 2 to 3/3500

TRH 32-45

1Capacity CFM / m3/h: 24/28
PSIG: 5/20
1Motor HP / RPM: 2 to 5/3500

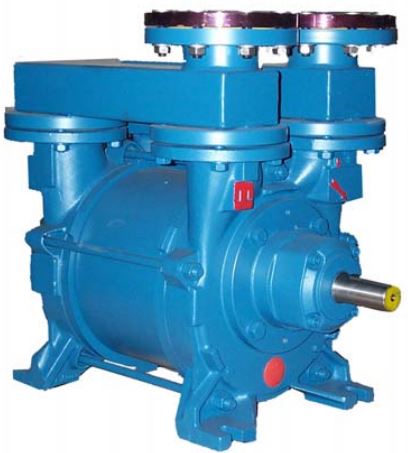

TRS COMPRESSOR

Compressors > TR Low Pressure Liquid Ring Process Compressors

DISSASSEMBLY MANUAL

Technical Documentation

TRS 32-20

1Capacity CFM / m3/h: 10.2/13.5
PSIG: 5/15
1Motor HP / RPM: 2 to 3/3500

TRS 32-50

1Capacity CFM / m3/h: 25/30
PSIG: 5/15
1Motor HP / RPM: 3 to 4/3500

TRS 40-50

1Capacity CFM / m3/h: 15/38
PSIG: 5/15
1Motor HP / RPM: 3 to 5/1750

TRS 40-100

1Capacity CFM / m3/h: 56/88
PSIG: 5/15
1Motor HP / RPM: 5 to 7.5/1750

TRS 125-1250

1Capacity CFM / m3/h: 535/850
PSIG: 5/20
1Motor HP / RPM: 30 to 100/880-1150

TRS 200-1950

1Capacity CFM / m3/h: 950/1570
PSIG: 5/20
1Motor HP / RPM: 75 to 225/735-960

TRS 200-2500

1Capacity CFM / m3/h: 1130/1995
PSIG: 5/20
1Motor HP / RPM:100 to 300/735-960

COMPRESSOR TRV/TRVX

Compressors > TR Low Pressure Liquid Ring Process Compressors

DISSASSEMBLY MANUAL

Technical Documentation

TRV 40-110

1Capacity CFM / m3/h: 59/68
PSIG: 5/28
1Motor HP / RPM: 7.5 to 10/1750

TRV 40-150

1Capacity CFM / m3/h: 77/97
PSIG: 5/28
1Motor HP / RPM: 10 to 15/1750

TRV 40-200

1Capacity CFM / m3/h: 113/141
PSIG: 5/28
1Motor HP / RPM: 10 to 15/1750

TRV 50-220

1Capacity CFM / m3/h: 113/141
PSIG: 5/28
1Motor HP / RPM: 12 to 20/1750

TRV 65-300

1Capacity CFM / m3/h: 166/207
PSIG: 5/28
1Motor HP / RPM: 15 to 30/1750

TRV 65-450

1Capacity CFM / m3/h: 200/295
PSIG: 5/28
1Motor HP / RPM: 20 to 40/1750

TRVX 1003/W

1Capacity CFM / m3/h: 202/382
PSIG: 5/44
1Motor HP / RPM: 40 to 80/1750

TRVX 1005/W

1Capacity CFM / m3/h: 250/482
PSIG: 5/44
1Motor HP / RPM: 40 to 100/1750

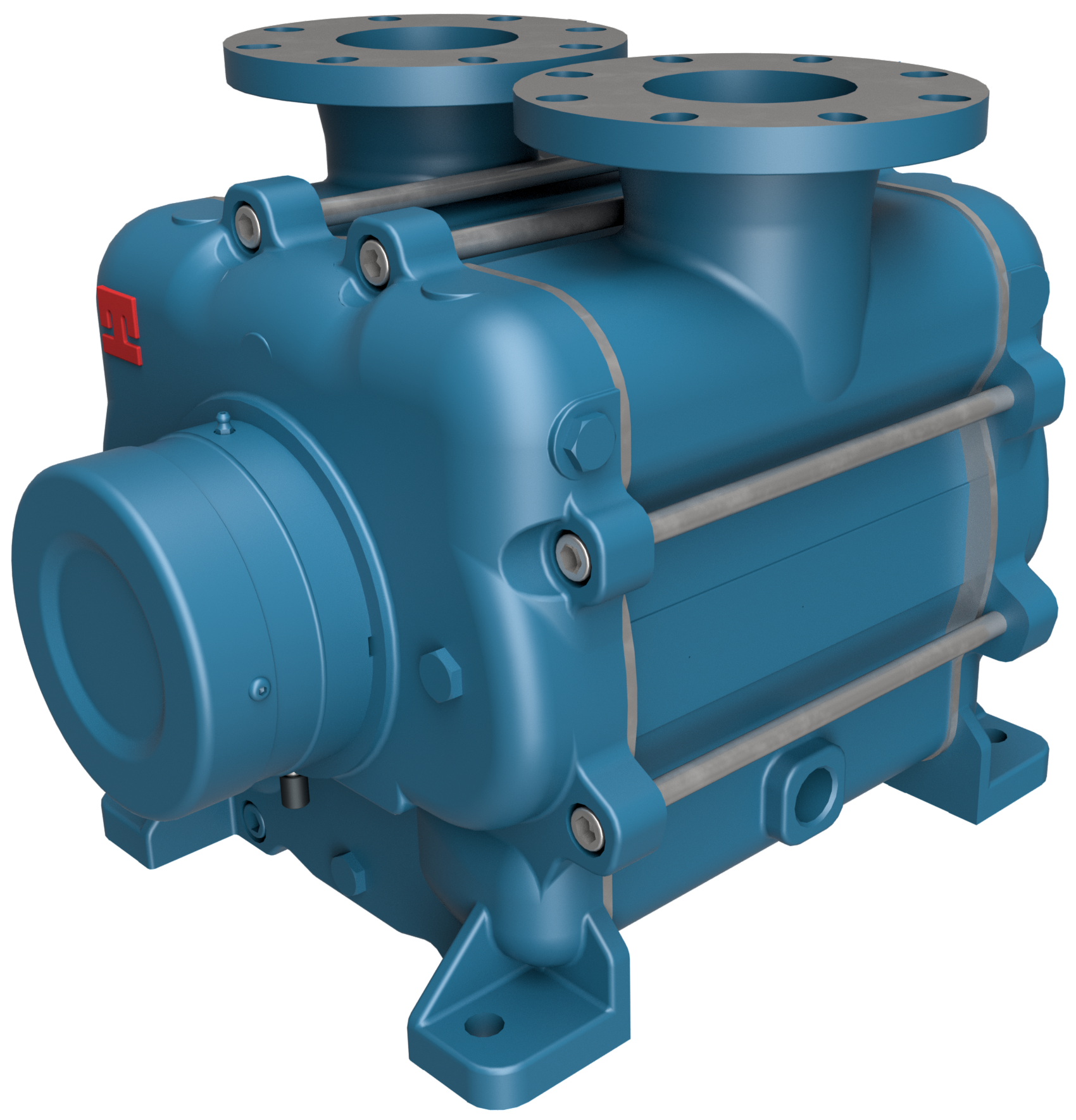

TRVX 1007/W

1Capacity CFM / m3/h: 300/550
PSIG: 5/44
1Motor HP / RPM: 40 to 100/1750

TRVK COMPRESSOR

Compressors > TR Low Pressure Liquid Ring Process Compressors

DISSASSEMBLY MANUAL

Technical Documentation

TRVK 1502

1Capacity CFM / m3/h: 500/865
PSIG: 2/21
1Motor HP / RPM: 20 to 100/565-740

TRVK 1503

1Capacity CFM / m3/h: 300/1180
PSIG: 2/22
1Motor HP / RPM: 30 to 120/565-740

TRVK 2003

1Capacity CFM / m3/h: 900/2390
PSIG: 2/22
1Motor HP / RPM: 60 to 300/490-790

TRVK 1503

1Capacity CFM / m3/h: 1250/3200
PSIG: 2/22
1Motor HP / RPM: 30 to 120/565-740

TRVK 2003

1Capacity CFM / m3/h: 1200/2750
PSIG: 2/22
1Motor HP / RPM: 750 to 300/420-472

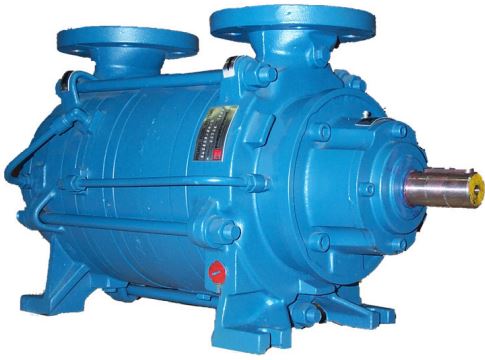

SAO COMPRESSOR

 SAO High Pressure Liquid Ring Oil Free Compressors

DISSASSEMBLY MANUAL

Technical Documentation

SAOE3U

1Capacity CFM / m3/h: 28/36
PSIG: 30/150
1Motor HP / RPM: 25/3500

SAOG2D

1Capacity CFM / m3/h: 48/66
PSIG: 30/150
1Motor HP / RPM: 30/3500

SAOG2G

1Capacity CFM / m3/h: 65/106
PSIG: 30/150
1Motor HP / RPM: 40/3500
